UNO R3, Atmega328P, Arduino clone with CH340
Vývojová deska - klon Arduino UNO, mikrokontrolér ATmega328P-AU, krystal 16MHz, Flash 32kB, SRAM 2kB, EEPROM 1kB, USB-Serial převodník CH340G, 14× digitální I/O, 6× PWM, 6× analogových vstupů, proud na pin 40mA, celkový proud I/O 150mA, napájení 7–12V (limit 6–20V), max. proud 5V sekce 800mA, max. proud 3,3V sekce 180mA, součástí balení dupont pinové lišty a USB kabel
In stock 5 pcs
Expected shipping:
15.06.2026
Regular price
189,00 Kč
156,20 Kč
excl. VAT
Unit price
/
Unavailable
OEM | SKU:
09830045
UNO R3, Atmega328P, Arduino clone with CH340
Regular price
189,00 Kč
156,20 Kč
excl. VAT
Unit price
/
Unavailable
Product description

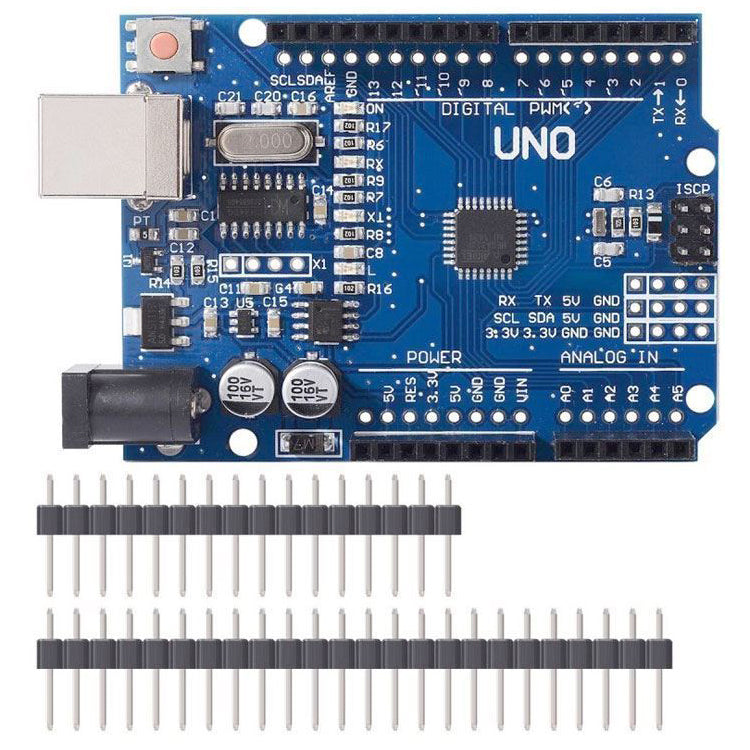

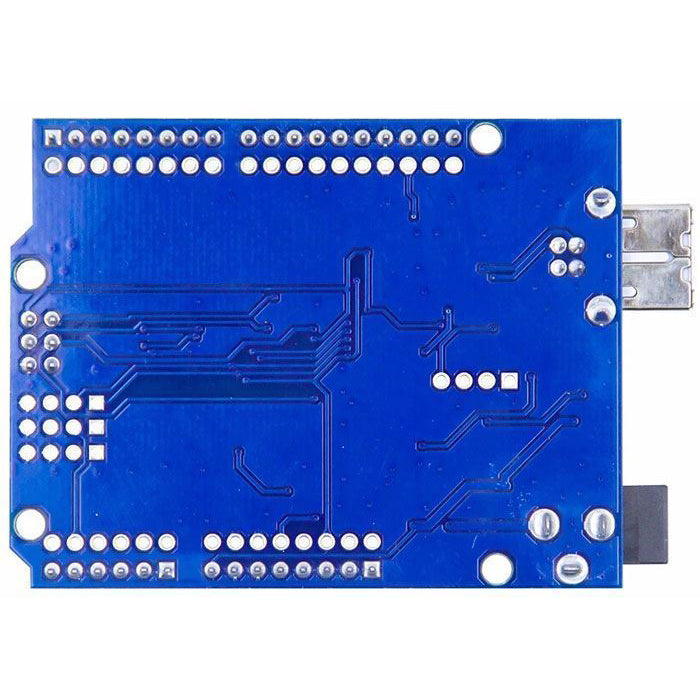

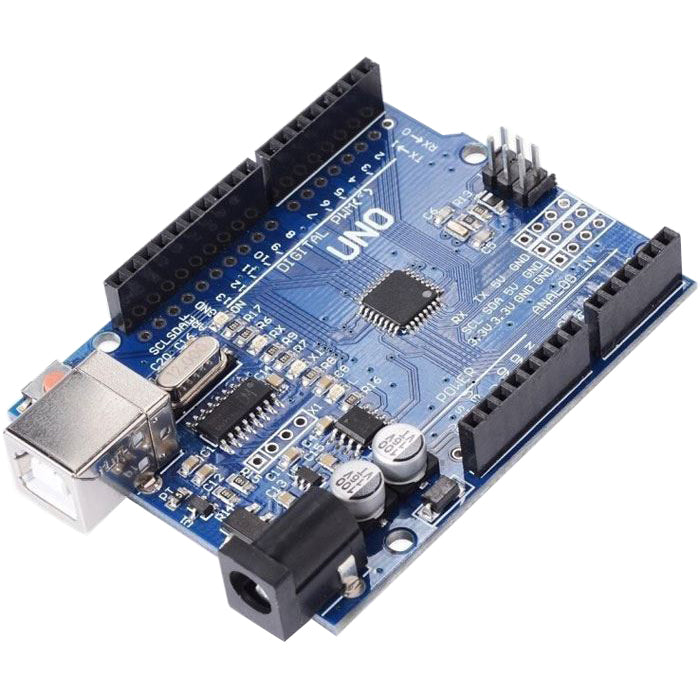

Precise clone of the Arduino UNO development board, with USB converter CH340 and USB. The board enables measurement, monitoring and control of devices using a simple programming environment based on the C ++ language.
Technical parameters:
- ATmega328P-AU microcontroller
- 16MHz crystal
- Flash 32kB
- SRAM 2kB
- EEPROM 1kB
- USB-Serial Converter CH340G
Inputs and outputs:
- 14 × digital I / O
- 6 × PWM
- 6 × analog inputs
- DC Pin current: 40mA
- DC Current on all IO pins: 150mA
- supply voltage 7–12V (limit 6–20V)
- max current section 5V: 800mA
- max current section 3.3V 180mA
Programming language:
- Wiring with Processing IDE (reference)
- Multiplatform development environment (Win / Linux / Mac /…)
- In addition, a dupont pin strip and a USB cable are included in the delivery.
This product is not a stand-alone unit and may require professional installation
Technical parameters:
- ATmega328P-AU microcontroller
- 16MHz crystal
- Flash 32kB
- SRAM 2kB
- EEPROM 1kB
- USB-Serial Converter CH340G
Inputs and outputs:
- 14 × digital I / O
- 6 × PWM
- 6 × analog inputs
- DC Pin current: 40mA
- DC Current on all IO pins: 150mA
- supply voltage 7–12V (limit 6–20V)
- max current section 5V: 800mA
- max current section 3.3V 180mA
Programming language:
- Wiring with Processing IDE (reference)
- Multiplatform development environment (Win / Linux / Mac /…)
- In addition, a dupont pin strip and a USB cable are included in the delivery.
This product is not a stand-alone unit and may require professional installation
