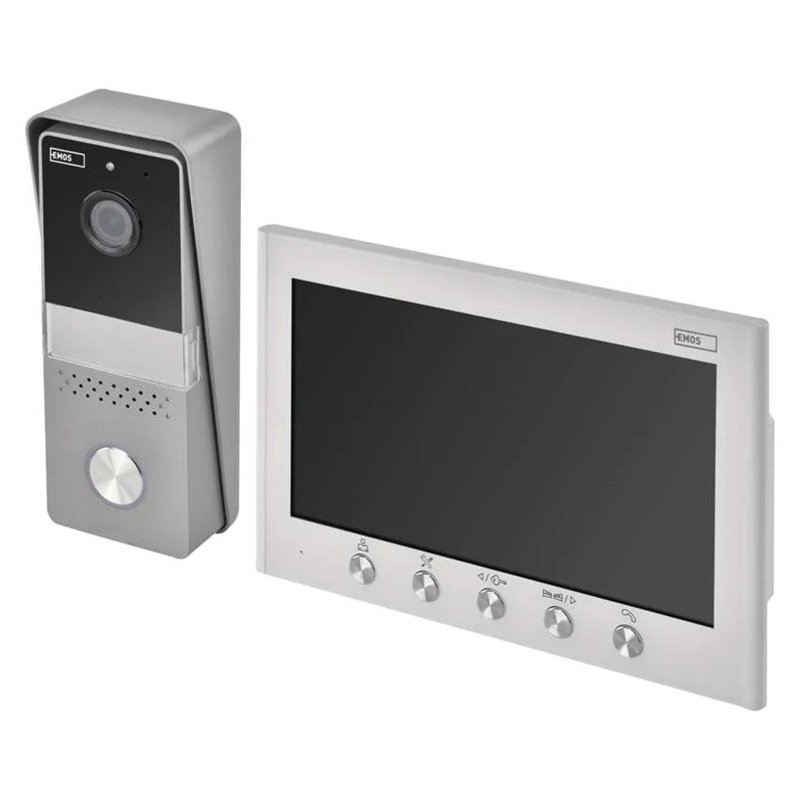

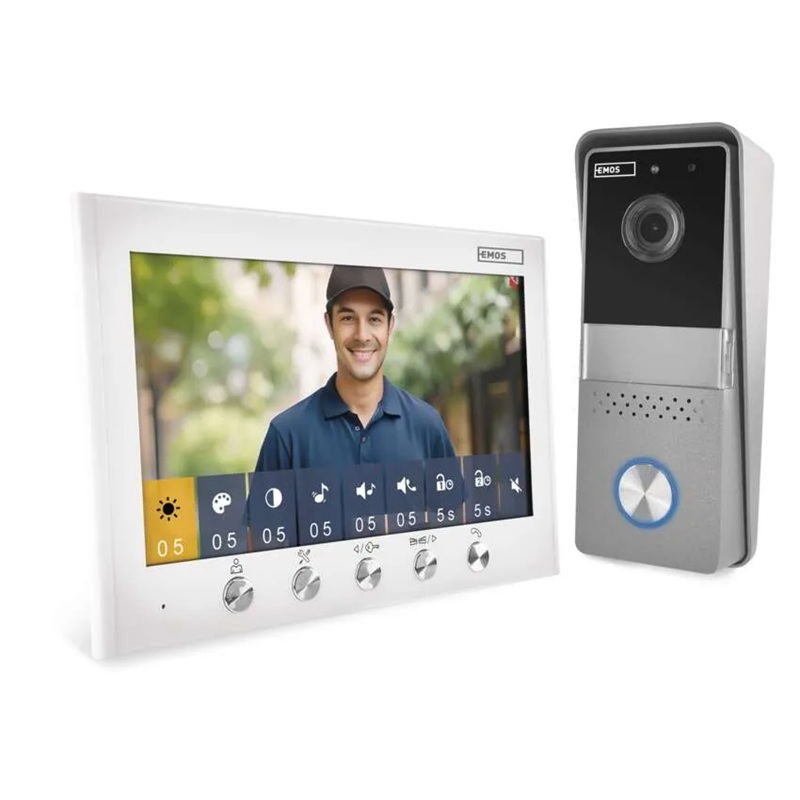

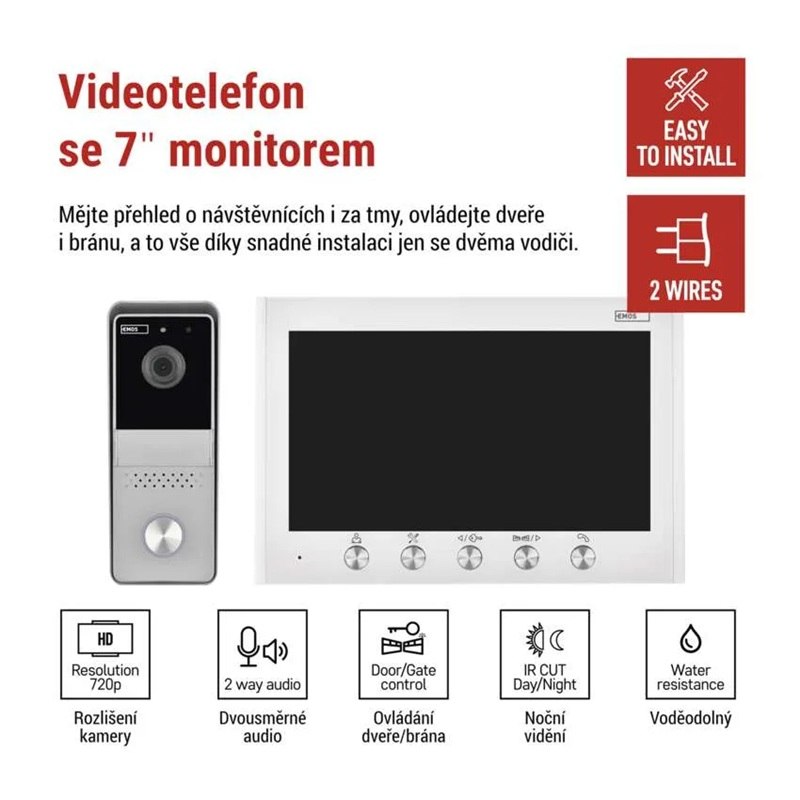

Videophone EMOS EM-04Z 2WIRE

Convenient communication and door opening
Discover a video phone set that combines modern design, easy installation and practical features for every day. With just 2 wires, you have a reliable guard at your door in no time. Enjoy clear images thanks to the HD camera (720p) and large 7" colour monitor, where you won't miss a detail - even at night thanks to night vision and a wide 120° viewing angle. Thanks to the possibility of operating an electronic lock (e.g. C0030, which you can also find in our e-shop), you can simply open the gate directly from the monitor, safely and without having to go to the entrance. The sturdy and waterproof construction of the outdoor unit in metallic grey ensures a long service life and an elegant appearance of your entrance, including space for a nameplate.

Always know who's at the entrance

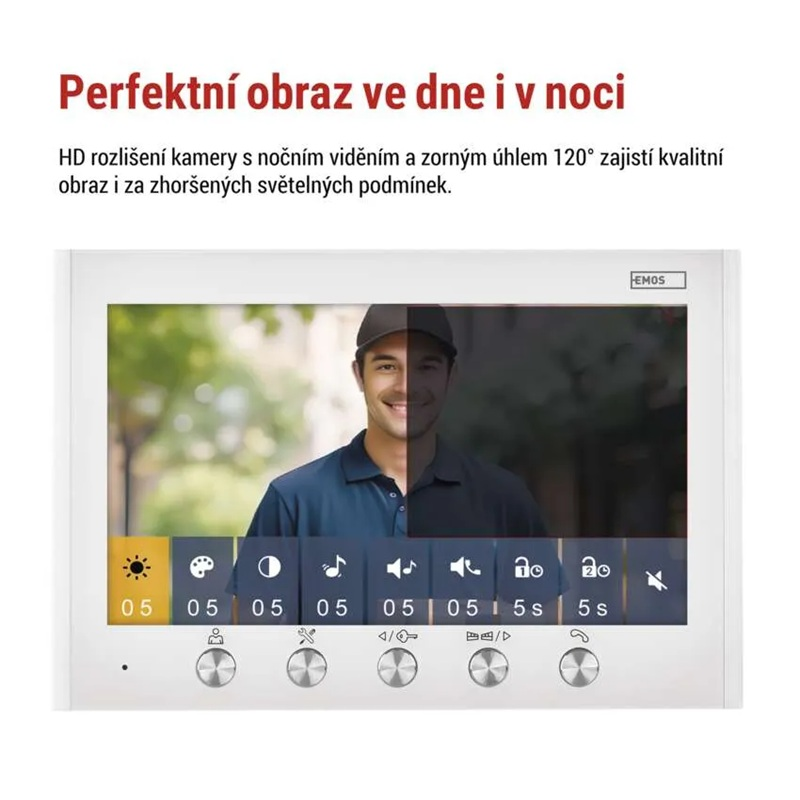

In darkness and in gloom, the camera system automatically lights up with infrared LEDs. This makes it easy to recognize the visitor even in low-light conditions, and thanks to the illumination of up to 5 m and a viewing angle of 120°, you won't miss anyone who isn't standing directly in front of the videophone. The image from the outdoor unit is then transferred to a 7” colour monitor.

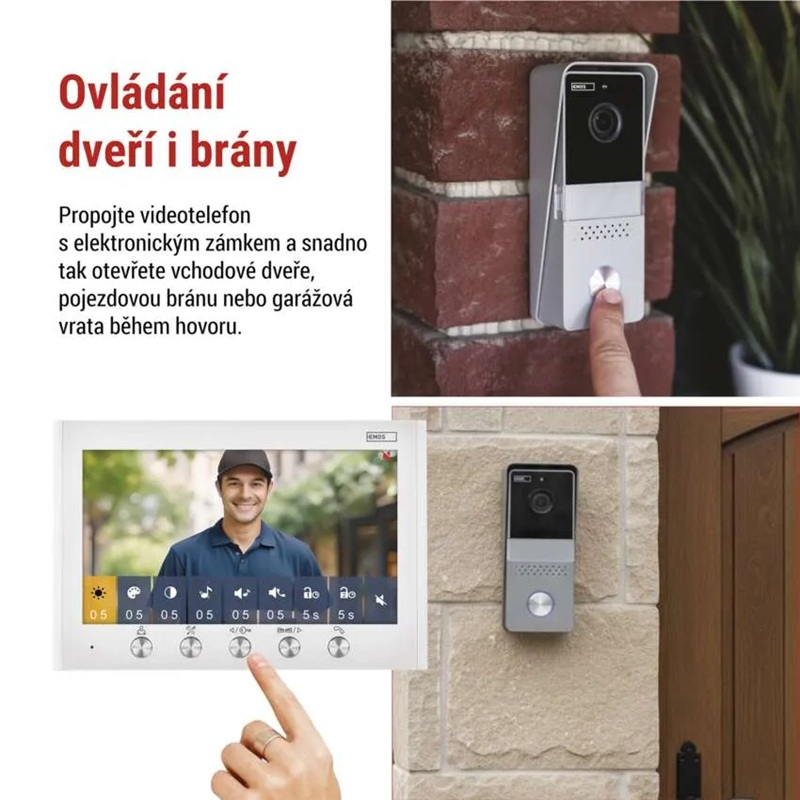

When alerted to an incoming visitor, you can control the door lock at the front door with the push of a button, even during a call. The system can also communicate with all types of electronic gate or garage door openers.

The EM-40Z videophone offers a wide range of control and customization options to suit your exact needs. You can watch a live preview even without ringing, activate the 'do not disturb' mode, adjust the brightness, color and contrast of the image, select melodies and ring volume, set the lock unlock time or the impulse to open the door or garage door. All conveniently and clearly for maximum comfort in your home.

Installation and control

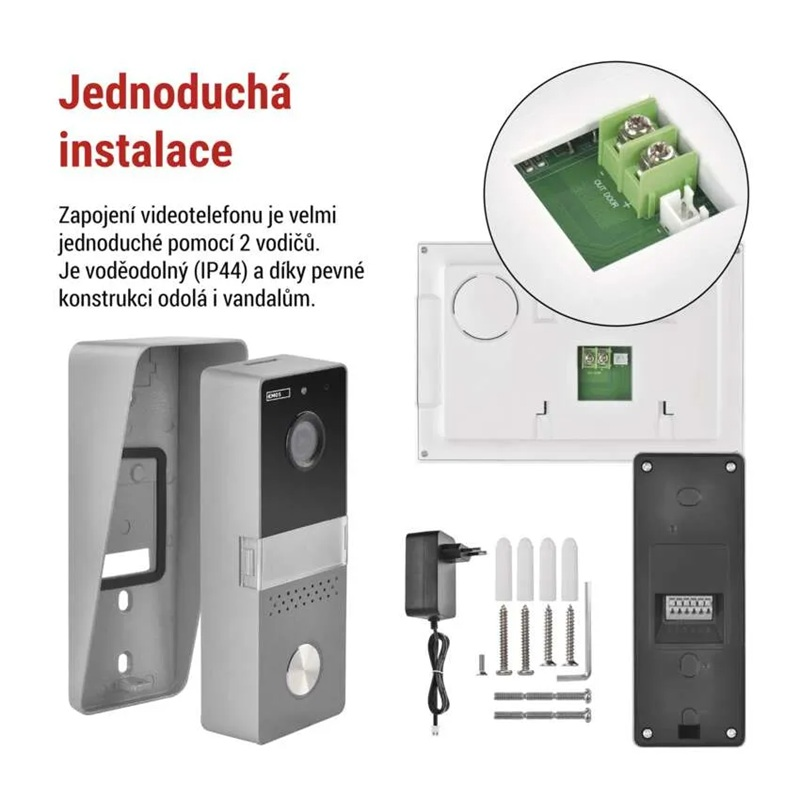

The EM-04Z videophone easily replaces your original doorbell - it only needs two wires to install instead of the usual four. You can adjust the ringer volume from five levels and choose from 12 preset melodies. A 7” colour monitor powered by the included adapter (32V/0.8A) ensures a sharp picture.

Technical parameters:

Number of monitors: 1
number of camera units: 1
number of camera unit buttons: 1
door lock included: no
power supply for lock included: no
lock control: door lock, gate travel
gate travel control: yes
camera illumination: yes, 5 m
IR CUT: yes
number of melodies: 12
volume control: yes, 5 levels
colour: gunmetal grey, black
display size: 7
colour display: yes, IPS

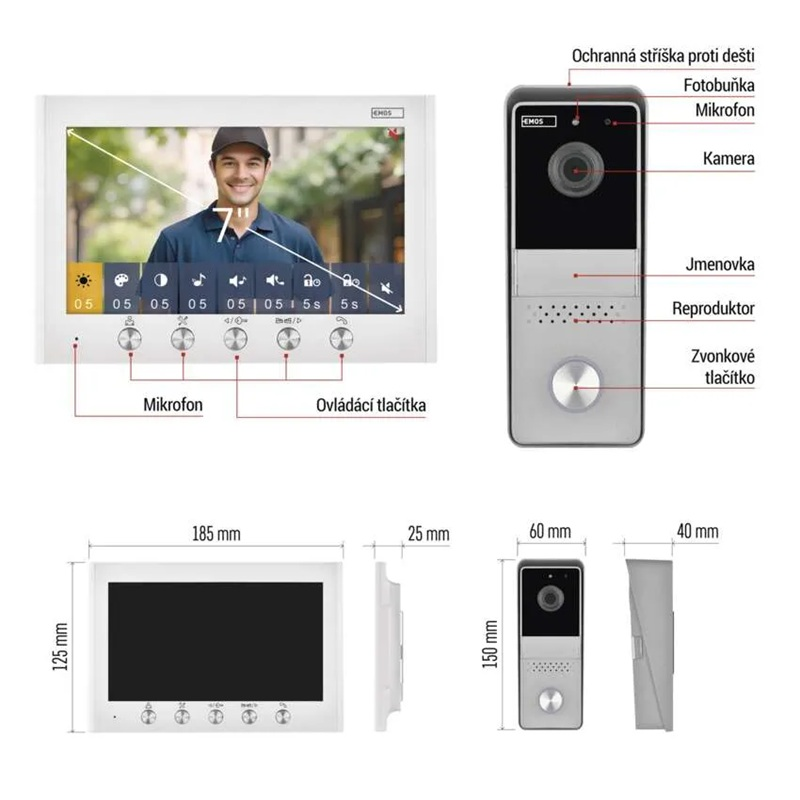

monitor size: 125 × 185 × 25 mm
monitor resolution: 720p HD
camera unit size: 150 × 60 × 40 mm
maximum camera angle: 120°
camera unit protection: IP44
camera resolution: 720p HD
camera sensing element: 720p HD
monitor power supply: 230 V/50 Hz
power supply of the camera unit: from the monitor
power supply included: yes
mounting: on the wall
antivandal design of the camera unit: yes
anti-theft protection: yes
recommended cabling: RVV/CYSY 2×1.0 mm
number of connecting wires (monitor/lock/gate): 2
installation material: screws, dowels,
