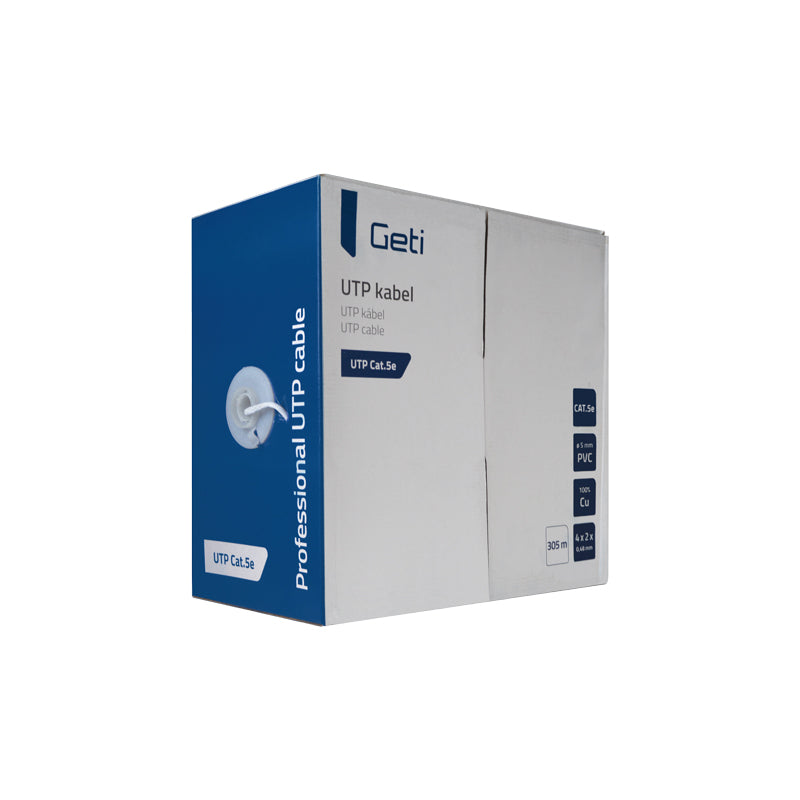

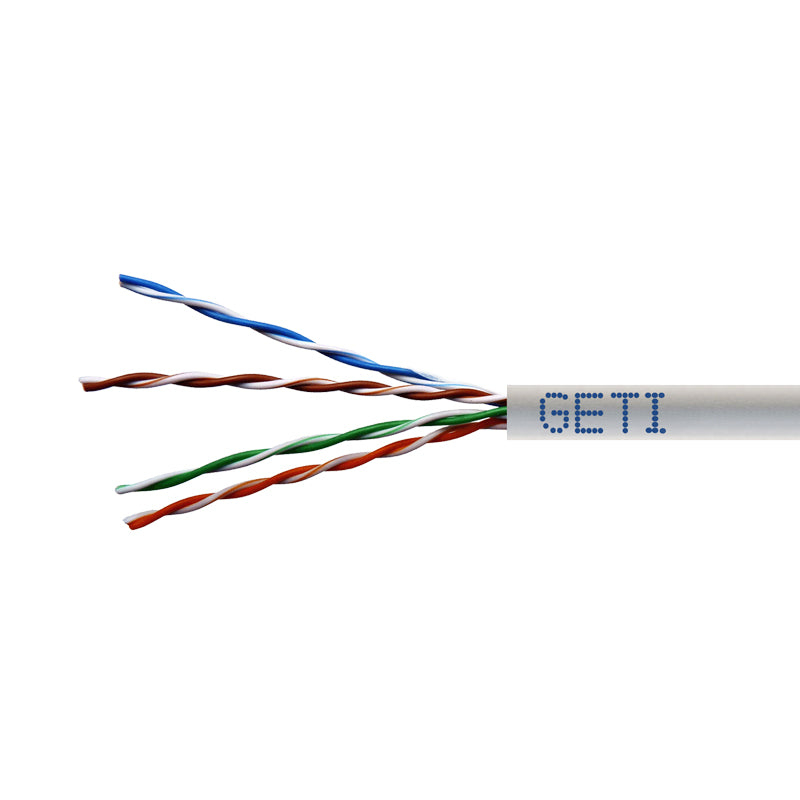

UTP cable GETI Cat.5e wire 305m

Professional cable for applications in structured cabling networks.


Technical parameters:

- inner conductor: pure copper, o 0,48 mm ± 0,005
- insulation: polyethylene 0,90 ± 0,05 mm
- identification of pairs:
1st pair: white-blue, blue
2nd pair: white-orange, Orange
3rd pair: white-green, green
4th pair:white-brown, brown
- conductor resistance: max. 93.8 ?
- Capacity: 56 pF / m
- casing: PVC
- color: white
- minimum static bend radius: 40 mm
- operating temperature: -30 ? + 60 ?
- storage temperature: -30 ? + 70 ?
- Packing 305m = 1pc
- packing quantity: 305m - pull box

-Connector diameter:

Attenuation MHz / dB / 100 m:

- 1MHz - 2dB
- 4MHz - 4.1dB
- 8MHz - 5.8dB
- 10MHz - 6.5dB
- 16MHz - 8.2dB
- 20MHz - 9.3dB
- 25MHz - 10.4dB
- 31.25MHz - 11.7dB
- 62.5MHz - 17dB
- 100MHz - 22dB
