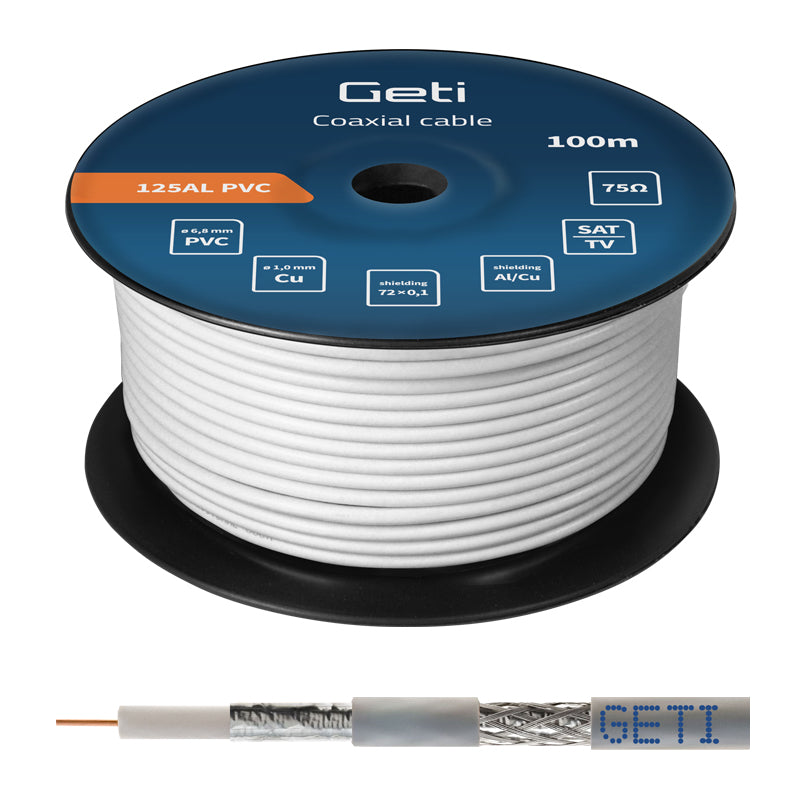

Coaxial cable GETI 125AL PVC (100m reel)
Wholesale price
Koaxiální kabel - impedance 75?, vnitřní vodič čistá měď o 1,00 mm, opletení pocínovaná měď 72 × 0,10 mm, vrstvená Al fólie, plášť PVC bílá o 6,80 mm, kapacita 55pF/km, max. napětí 2kV, útlum odrazu >20dB (5–2500MHz), útlum 6,3dB/100 m při 100MHz, činitel zkrácení 84 %, min. poloměr ohybu 65 mm, pracovní teplota -30 až +60°C, balení 100 m cívka
Will be restocked
Expected shipping:
30.07.2026
at our place
Regular price
2.044,00 Kč
1.689,26 Kč
excl. VAT
Unit price
/
Unavailable
GETI | SKU:
03610130
Coaxial cable GETI 125AL PVC (100m reel)
Regular price
2.044,00 Kč
1.689,26 Kč
excl. VAT
Unit price
/
Unavailable
Product description

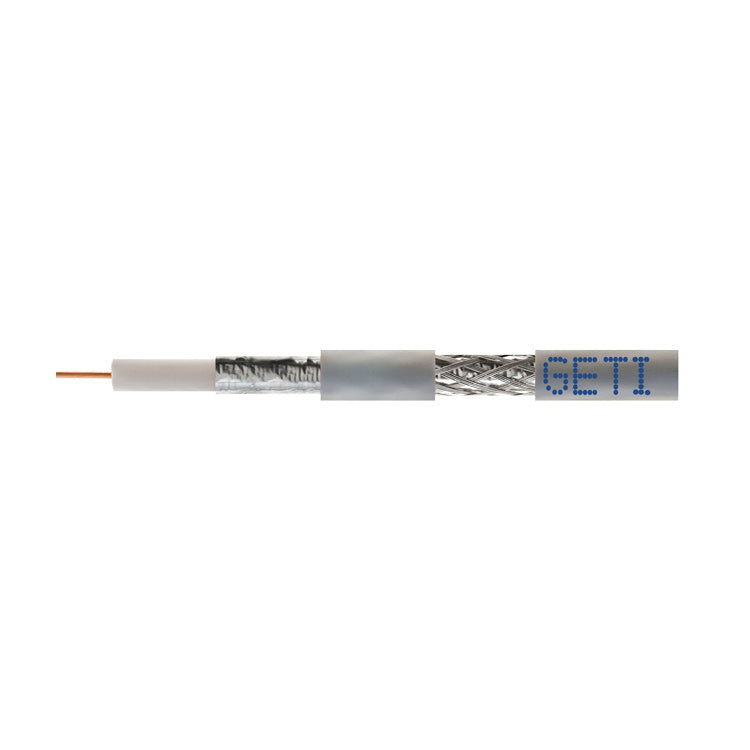

High quality coaxial cable with bare copper core, used in cabled distribution networks.
Technical parameters:
- inner conductor: pure copper, o 1,00mm ± 0,01
- first screen: overlapped Al foil: o 4,92mm ± 0,05
- second screen: tinned copper, 72 x 0,10 mm
- braid diameter: 5,32mm ± 0,05
- dielectric: o 4,80mm ± 0,05
- sheath: PVC white, o 6,8mm ± 0,10
- nominal impedance: 75 ? ± 3
- capacity: 55 pF / km ± 2
- maximum voltage: 2kV
- return loss:> 20 dB (5-2500 MHz)
- minimum static bend radius: 65mm
- velocity ratio: 84% (+/-2)
- operating temperature: -30 ? + 60 ?
- storage temperature: -30 ? + 70 ?
- packaging: 100m = 1pc
- packing quantity: 2pcs carton box
Attenuation MHz / dB / 100 m:
- 5MHz - 1.8dB
- 50MHz - 4.7dB
- 100MHz - 6.3dB
- 200MHz - 8.8dB
- 400MHz - 12.6dB
- 600MHz - 15.6dB
- 800MHz - 18.2dB
- 862MHz - 18.8dB
- 1000MHz - 20.1dB
- 1350MHz - 23.5dB
- 1750MHz - 27.4dB
- 2400MHz - 33.0dB
