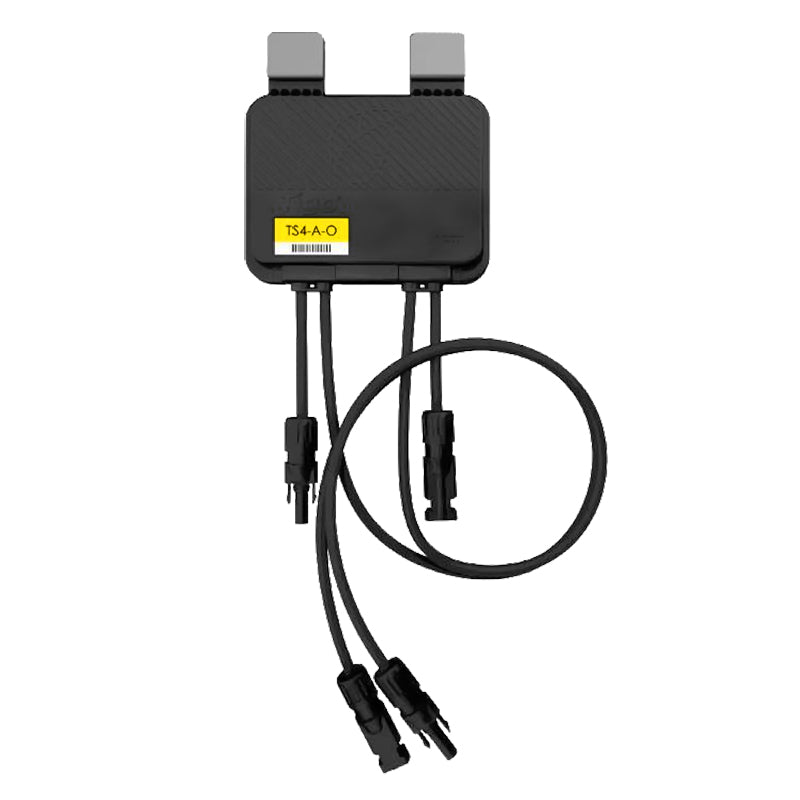

Tigo TS4-A-O 700W/20A power optimizer
New
Wholesale price
Výkonový optimizér pro solární panely - max. výkon panelu 700W, max. vstupní proud 20A, rozsah vstupního napětí 16–80V, krytí IP68, bezdrátový přenos dat, monitorování výkonu na úrovni jednotlivých panelů, podpora částečného zastínění a smíšeného uspořádání panelů, spínání pole bez napětí, 25letá tovární záruka, typ Tigo TS4-A-O
Will be restocked
Regular price
1.150,00 Kč
950,41 Kč
excl. VAT
Unit price
/
Unavailable
OEM | SKU:
04291282
Tigo TS4-A-O 700W/20A power optimizer
Regular price
1.150,00 Kč
950,41 Kč
excl. VAT
Unit price
/
Unavailable
Product description
With the Tigo TS4-O optimizer, the entire installation can be monitored and optimized at panel level. With panel-level optimization, systems with partial shading or different panel arrangements can also be implemented. It also allows switching the panel array without voltage. Production data is visualized and damage caused by contamination or shading is also displayed. Panel optimizers can be installed only on the affected panels or on the entire system.
Product parameters:
- Shading and age tolerance
- fewer BOS components
- faster installation
- inverter optimization
- less cable loss
- 25-year factory warranty
- panel-level monitoring
- wireless transmission
Specifications:
- maximum panel power: 700 W
- maximum input current: 20 A
- ingress protection: IP68
- voltage range: 16-80 V
- Cable length: 1.2 m
- connectors: MC4/EV02
- Dimensions: 139 x 139 x 23 mm
- weight: 520 g
Product parameters:
- Shading and age tolerance
- fewer BOS components
- faster installation
- inverter optimization
- less cable loss
- 25-year factory warranty
- panel-level monitoring
- wireless transmission
Specifications:
- maximum panel power: 700 W
- maximum input current: 20 A
- ingress protection: IP68
- voltage range: 16-80 V
- Cable length: 1.2 m
- connectors: MC4/EV02
- Dimensions: 139 x 139 x 23 mm
- weight: 520 g
