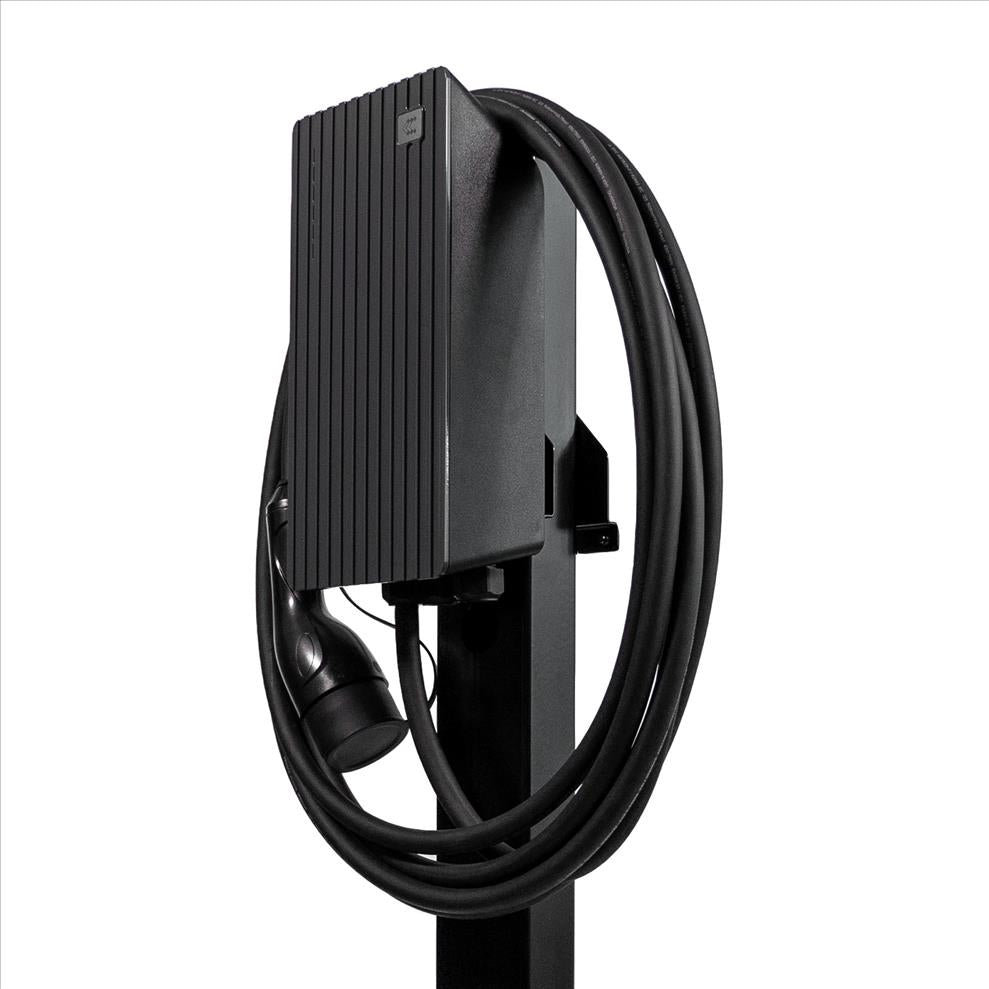

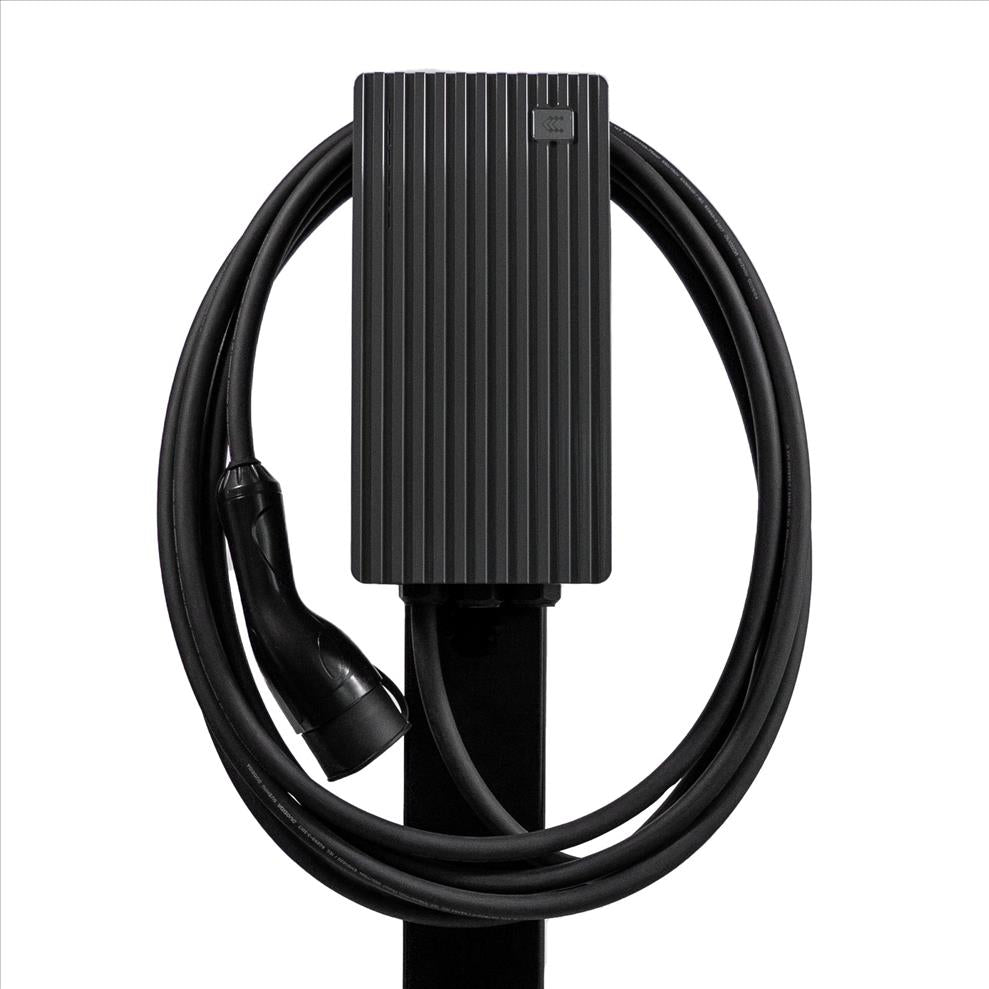

Wallbox Teltonika Teltocharge EVC2, 22kW, Type 2, 5m cable

Wallbox Teltonika TeltoCharge EVC2 22kW with 5m Type 2 cable: premium, highly reliable and smartly controlled charging station for demanding users

Take your home and business EV charging to the highest level with a technologically advanced solution from the world leader in network technology. The Teltonika TeltoCharge EVC2 wallbox is a cutting-edge combination of uncompromising three-phase power up to 22 kW, advanced smart features and exceptional European design. With an integrated 5m Type 2 cable and robust design, this station is the ideal choice for safe, fast and maximally efficient everyday charging.

KEY FEATURES:

- First-class power and speed. The power is fully adjustable from 6 A to 32 A for seamless adaptation to your electrical connection.
- Perfect synergy with photovoltaics: The TeltoCharge EVC2 offers advanced integration with your home photovoltaic (PV) power plant. It enables intelligent energy flow control so you can charge your vehicle cleanly from eco-friendly and free solar surplus.
- Advanced connectivity and management: Have full control of your charging via the intuitive Teltonika Energy mobile app via Bluetooth or Wi-Fi. You can remotely monitor real-time stats, schedule charging for times with a cheap tariff (night time current) or lock the station.
- Secure RFID authentication: prevent unauthorized use of the station. The integrated RFID card reader allows only authorized users or company employees to quickly and securely unlock the wallbox.
- Dynamic Smart Load Balancing: Protect your home from power outages. In conjunction with an external smart meter, the station constantly monitors the building's consumption and automatically reduces or increases charging power according to the current load on the grid.
- Extreme all-weather durability: with an excellent IP55 rating and IK10 mechanical resistance, the wallbox is designed to reliably withstand heavy rain, snow, dust and rough handling. It is perfectly suited for both indoor and demanding outdoor installations.
- Top industrial quality: development and complete production in Lithuania (EU) under the renowned Teltonika brand guarantees the use of top quality components, maximum reliability and long service life.

TECHNICAL PARAMETERS:

Model: Teltonika TeltoCharge EVC2 (EVC2110M0000)
Maximum charging power: 22 kW (3 phases)
Adjustable current: 6 A to 32 A (configurable via mobile app)
Connector (vehicle side): Type 2 (IEC 62196-2)
Integrated cable length: 5 metres (smooth premium cable)
Rated voltage: 400 V AC ± 10% (3P+N+PE) / also compatible with 230 V (1 phase)
Rated frequency: 50 Hz / 60 Hz
Connectivity: Wi-Fi (2.4 GHz), Bluetooth, Ethernet (RJ45)
User interface: RFID reader (NFC), Teltonika Energy mobile app, LED status indicator (LED strip)
Communication protocol: OCPP 1.6j
Integrated protection: RCM residual DC current detection (DC 6 mA) and built-in protection against overvoltage, undervoltage, overtemperature and short circuit
Degree of protection / Resistance: IP55 (splash and dust proof) / IK10 (vandal resistant rugged chassis)
Operating temperature: -30 °C to +50 °C (suitable for year-round outdoor operation)
Dimensions (without cable): 170 mm x 341 mm x 97 mm
Weight (without cable): approx. 2.8 kg
Colour: Grey / Dark grey (Premium matt industrial design)
