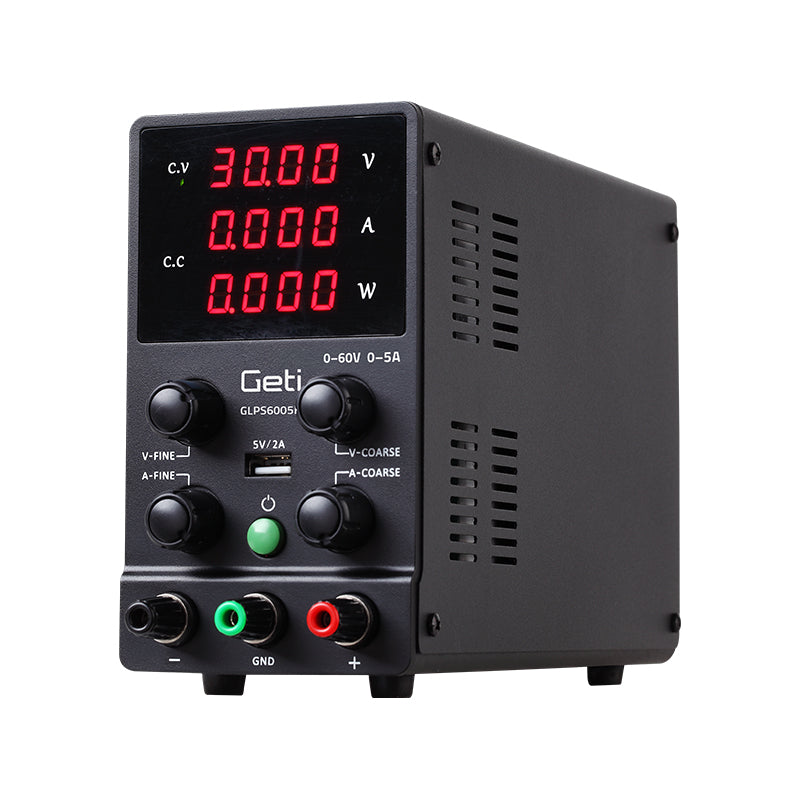

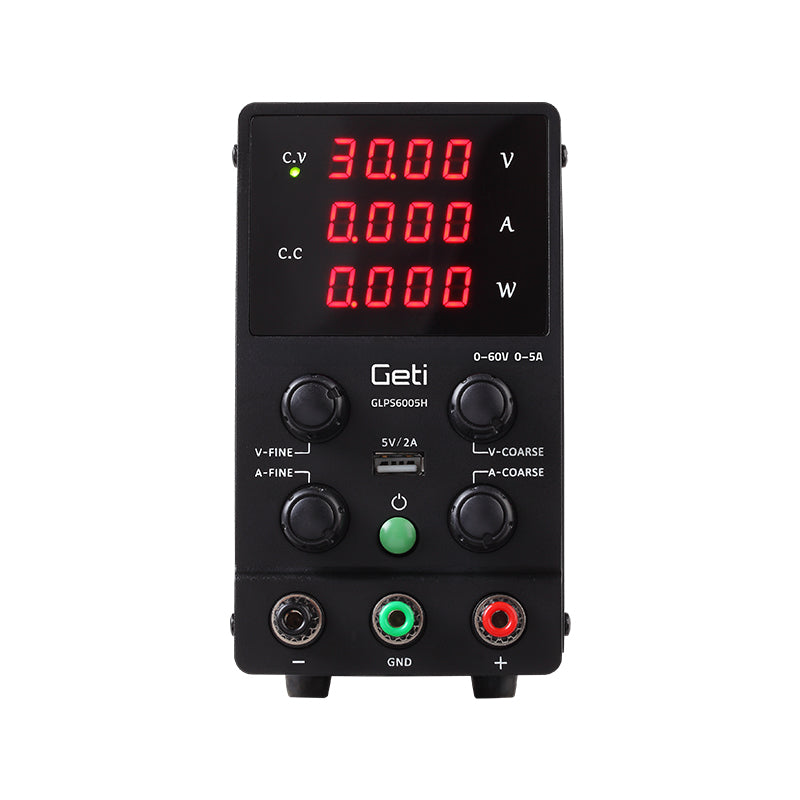

Laboratory power supply GETI GLPS6005H 0-60V/ 0-5A

This product comes with a 3-year warranty.

Laboratory power supply Geti GLPS 6005H is intended for powering various electronic devices. It smoothly regulates the output voltage and output current. It reliably maintains the set values ??regardless of fluctuations in the supply voltage or the connected load. The output voltage is adjustable between 0V - 60V and the output current is adjustable 0A - 5A. The stability and ripple factor of the source are very good. The device can be operated as a source of constant voltage or as a source of constant current. The device is equipped with short-circuit protection so that in case of an unexpected event it is safe for the user and at the same time it is not destroyed. The power supply is suitable for work in laboratories, workshops, electronics production lines, companies repairing household appliances, DIY, but also as a teaching aid in schools.


Product parameters:

- single-channel direct current source
- adjustable voltage and current
- backlit triple LED display for U(V), I(A) and P(W)
- high-quality and compact design
- overload protection
- USB 5V / 2A


Technical parameters:

- output voltage range: DC 0 - 60 V, coarse+fine regulation
- output current range: 0 - 5 A, coarse+fine regulation
- supply voltage: 220-230V AC, 50 Hz

Constant voltage condition:
- voltage stability ?0.2% ± 3 mV
- low voltage 0.3 - 0.4% ± 3 mV
- load stability ?0.5% ± 3 mV
- ripple and noise ?150mVp-p

Constant Current Status:
- current stability ?0.2% ± 3 mA
- load stability ?0.2% ± 3 mA
- ripple and noise ?20mAms

- display accuracy: 0.5% ± 2 digits
- display resolution: voltage 00.01 V / 0.01 V
- display resolution: current 0.001 A / 0.01 A
- working temperature 0 °C - 40 °C
- operating humidity <80% RH
- weight: 1.4 kg
- dimensions: 220 x 85 x 150 mm
- standard fuse: T5A
