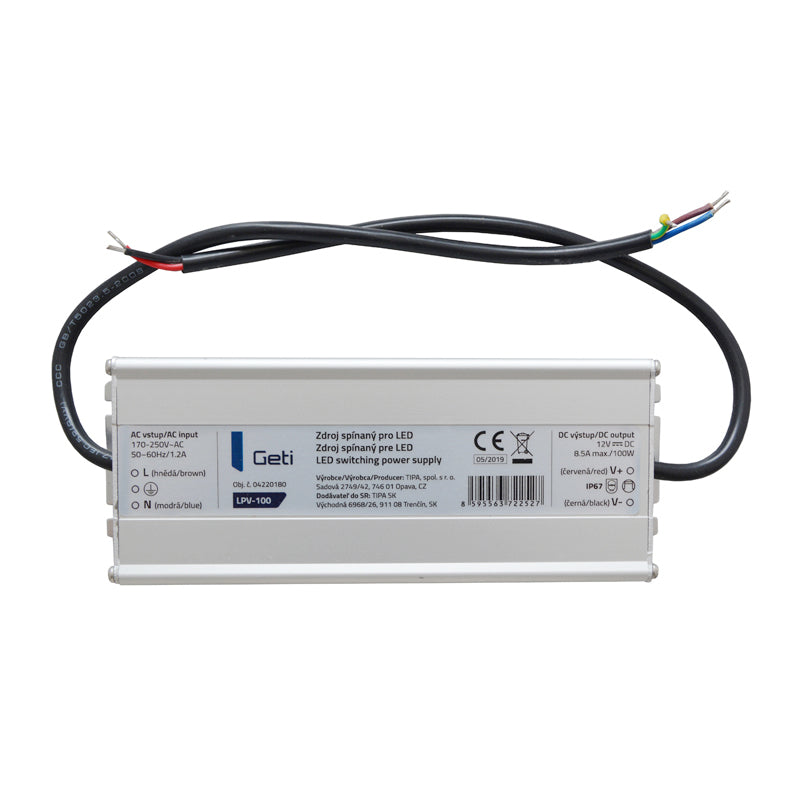

Power supply LED driver 12VDC/100W LPV-100, GETI

This product comes with a 3-year warranty.

Switching source of constant voltage LPV-100, with output voltage 12V is suitable for powering LED strips. High IP67 provides protection against dust and water.


Product parameters:

- metal case
- with cable ends at both input and DC output


Technical parameters:

- output voltage: 12V DC
- input Voltage: 230V AC / 50Hz (90 ~ 264V AC / 47-63 Hz)
- power: 100 W
- output Current: 8,5 A (max.)
- ripple: 100mV (max.)
- efficiency: 82%
- protection: short circuit, overload and overheating
- size: 185 x 69 x 43 mm
- working temperature: -20 ? - + 60 ?, 20% -90% RH
- protection: IP67
- weight 0.,9 kg
