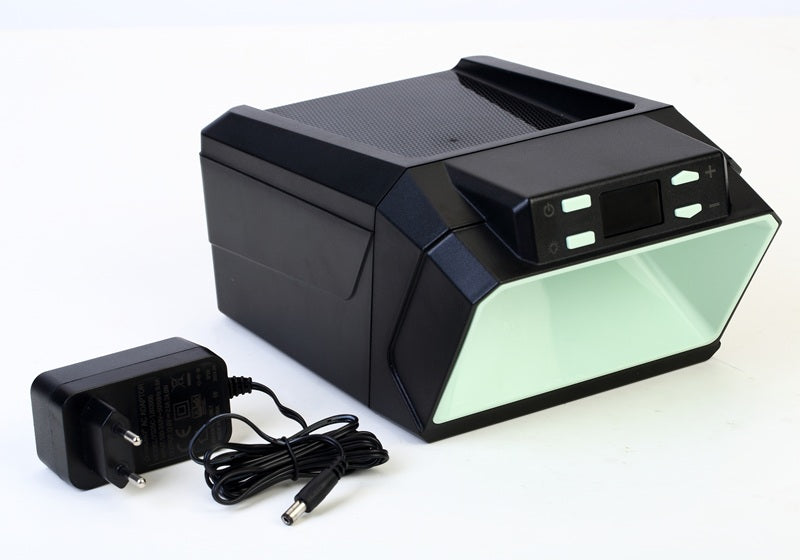

ZHONGDI ZD-602 Solder Fume Extractor

ZD-602 soldering fume and vapour extractor. Soldering often releases fumes and aerosols containing rosin, which irritate the skin and respiratory tract. By extracting soldering fumes using advanced filtration technology, this unit allows you to work in a clean environment without the risk of inhaling harmful substances. Pollutants are extracted directly at source and then filtered out. This prevents direct contact with the skin and respiratory tract, as well as the spread of these vapours throughout the room. Thanks to its compact design and the ability to stack it with soldering stations, you can optimise your workspace perfectly.


Product specifications: - a multi-layer filtration system effectively removes harmful substances and unpleasant odours, ensuring clean air around the work area - a soldering station can be mounted on the extractor, increasing its versatility and ease of use
- Speed settings: 10% to 100%, allowing you to adapt to various soldering tasks - Simple operation - LED work area lighting - Easy filter replacement - LED display


Technical specifications: - Filtration system: multi-layer, 3-stage - Filter types: Cotton filter – ensures effective removal of pollutants, particles and vapours PM 2.5 HEPA filter
activated carbon filter – absorbs unwanted odours, toxic volatile substances and vapours - fan speed settings: 10 to 100 per cent - air flow (max.): 32 m3/h
- display: shows extraction speed - lighting: 2x LED - power supply adapter: 100–240 V AC, 50/60 Hz, 0.8 A 12 V DC, 2.0 A / 24 W
