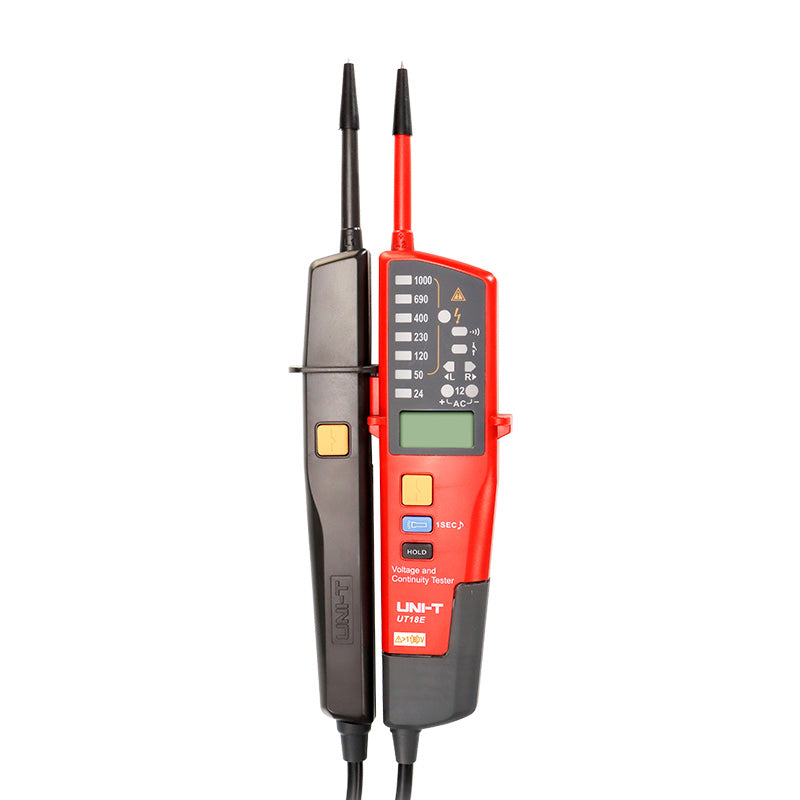

Voltage detector UNI-T UT18E

This product comes with a 3-year warranty.

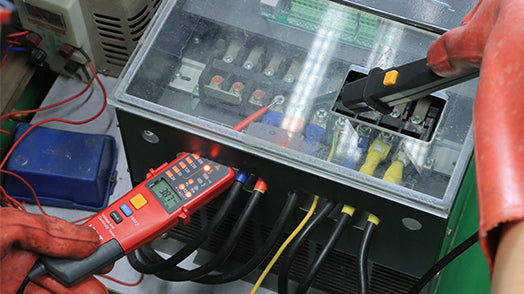

UNI-T UT18E Tester. The UT18 series tester is designed to test AC/DC voltage (up to 1000V), three-phase voltage, phase sequence, continuity and more. This series is rated CAT IV 600V and meets the IP65 protection standard. The voltage tester is designed to make the work of electricians, technicians and other professionals working with electricity in all environments easier.
It is equipped with several useful functions for voltage identification. It has an automatic mode that detects AC or DC voltage and signals the presence of voltage with an audible and visual warning.


Product parameters:

- 8 voltage levels: 12V, 24V, 50V, 120V, 230V, 400V, 690V, 1000V (AC/DC)
- phase sequence test
- automatic polarity test
- RCD function - residual current device test
- automatic shutdown
- frequency measurement
- low impedance measurement
- LED+LCD display simultaneously
- audible alarm

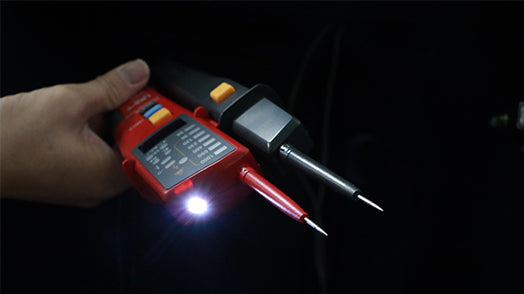

- integrated LED flashlight
- CAT III 1000V / CAT IV 600V


Technical parameters:

- voltage (AC/DC)
6V ±(1.5% + 1)
12V ±(1.5% + 2)
24V ±(1.5% + 2)
50V ±(1.5% + 3)
120V ±(1.5% + 4)
230V ±(1.5% + 5)
400V ±(1.5% + 5)
690V ±(1.5% + 5)
1000V ±(1.5% + 5)

- phase rotation test 100V AC ~400 V AC, 50Hz~60Hz
- continuity test
- sound and LED light signaling
- residual current device test 230V (50-400Hz)
- polarity detection
- auto range: full range
- overvoltage protection 1100V
- auto standby: standby current<10 µA
- backlight: full range
- low battery indication: approx. 2.4 V
- LCD display (voltage): 6V~1000V
- LCD display (frequency): 40Hz~400Hz ±(3%+5)
- protection IP65
- CAT III 1000V; CAT IV 600V

- product color: red, black
- power supply 2 x AAA 1.5V LR03 batteries
- product weight (including batteries) 277g
- product dimensions: 272 x 85 x 31 mm
- standard quantity in a carton: 20 pcs
- standard carton: dimensions 415 x 380 x 365 mm

Manufacturer: UNI-TREND
