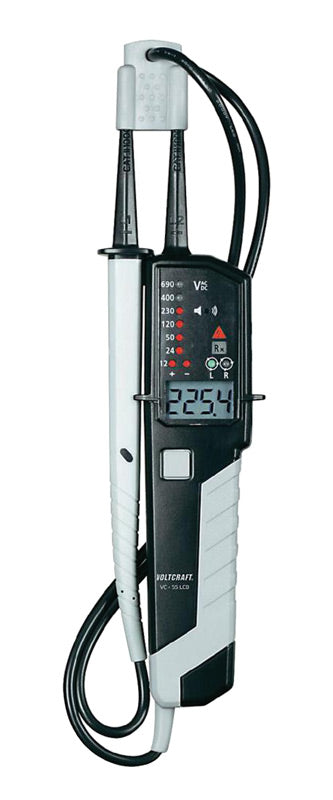

Voltage detector Voltcraft VC-55 LCD

Voltcraft VC-58 LCD two-pole voltage tester. It is designed and tested in accordance with EN 61243-3/VDE0682 standards. The voltage is displayed using LEDs, which determine the range of 12 - 690 V. In addition, the effective value is displayed on the LCD display from 0 - 690 V.


Product parameters:

- DC and AC voltage testing (LED/LCD)
- Polarity test (LED/LCD)
- Optical and acoustic continuity tester
- Single-pole phase testing option 100 - 690 V/AC
- Phase sequence
- Integrated measuring point lighting
- Continuity test
- Integrated flashlight
- CAT III 1000 V, CAT IV 600 V


Technical parameters:

- Product category: Two-pole voltage tester
- Measuring function: Continuity test
- Phase test: Phase sequence test
- Display: Acoustics, LCD, LED
- Measuring range V AC: 12 to 690 V
- Measuring range V DC: 12 to 690 V
- Measuring category: CAT III 1000 V , CAT IV 600 V
- protection: IP64
- calibrated according to: no certificate
- dimensions: (w x h) 65 mm x 242 mm
- frequency (max.): 400 Hz
- frequency (min.): 16 Hz
- frequency range: 16 Hz - 400 Hz
- max. measured value V/AC: 690 V
- min. measured value V/AC: 12 V
- max. measured value V/DC: 690 V
- min. measured value V/DC: 12 V
- width: 65 mm
- height: 242 mm
- type: VC-55 LCD
- display: LED / LCD / Buzzer
- operating temperature: -15 - +55 °C
- frequency range: DC 16 - 400 Hz
- power supply: 2x micro-cell battery (AAA)
- current consumption: 3.5 mA
- voltage measurement range: 12 - 690 V AC/DC

Package contents:
- tester
- 2 test tips 4 mm
- battery
