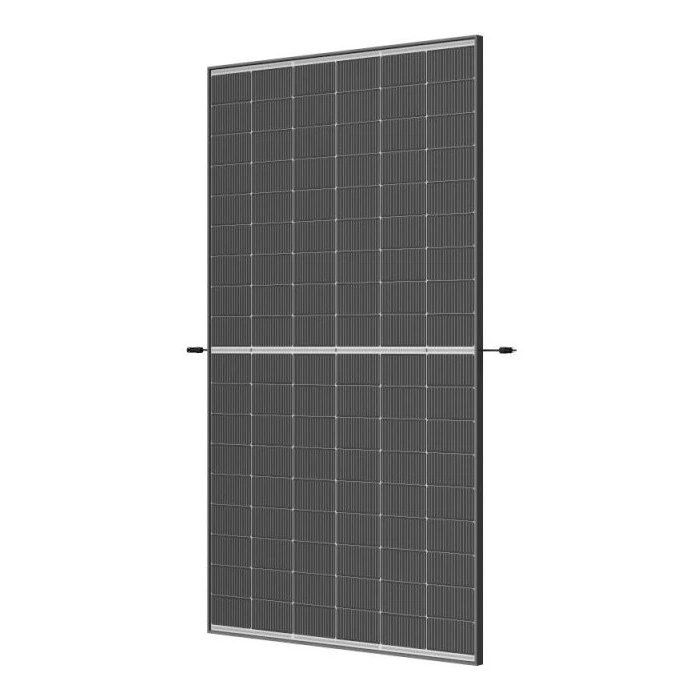

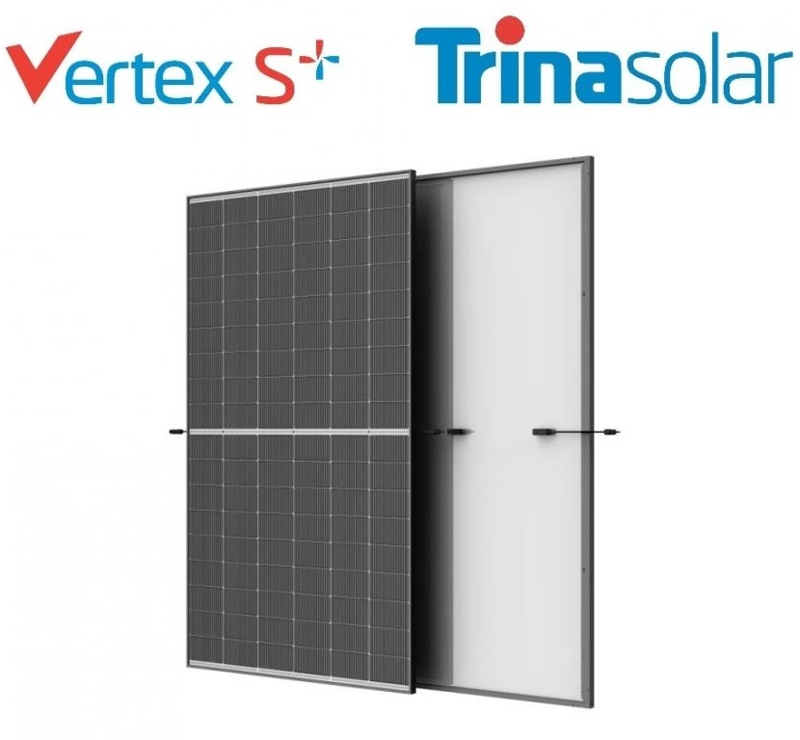

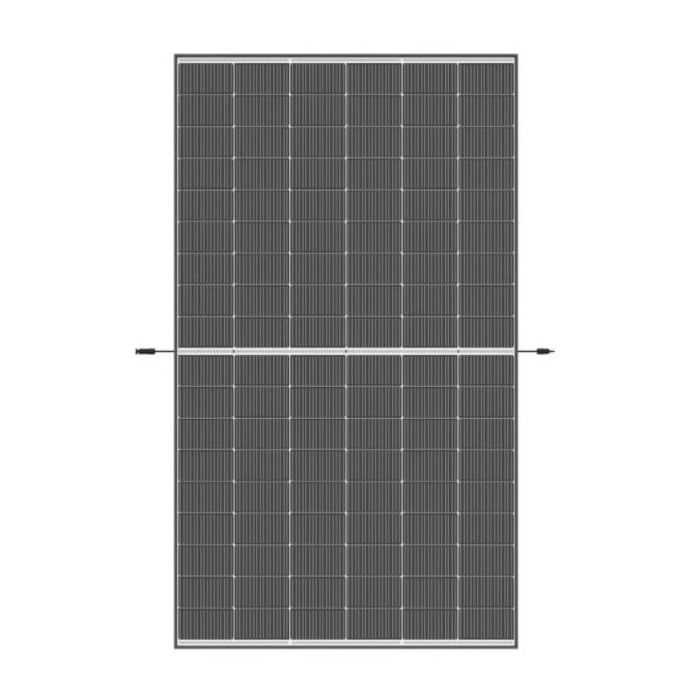

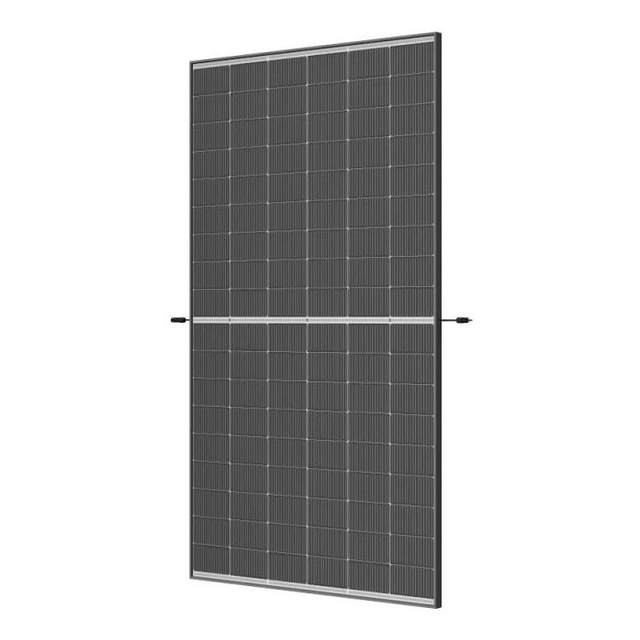

Solar panel 450W Trina Solar TSM-NEG9R.28, Vertex S+ Dual Glass N-Type

The Trina 450 W photovoltaic module from the Vertex S+ series is made of monocrystalline cells with N-type i-TOPcon technology. The Vertex S+ module has several innovative design features that enable high output power. A perfect temperature coefficient and low irradiation efficiency ensure even higher performance. In addition, thanks to its high-density connection, the Vertex S+ can achieve an efficiency of up to 22%. N-type cells are manufactured using phosphorus, which allows them to achieve lower power degradation rates, resulting in higher efficiency over many years of use, leading to greater savings

Product parameters:

- 30-year performance warranty
- 25-year product warranty
- High and stable efficiency of up to 22.5% thanks to innovative manufacturing technology
- Positive power tolerance of up to +5 W
- Minimized microcracks thanks to innovative non-destructive cutting technology
- Multi-busbar technology improves light absorption and current distribution, lower series resistance
- Excellent performance even in low sunlight
- Snow load up to 5400 Pa and wind load up to 4000 Pa

Technical parameters:

- Nominal power: 450 W
- Type: N-type, Topcon, monocrystalline
- Module efficiency: 22.5%
- maximum current (Imp): 10.09 A
- maximum supply voltage (Vmp): 44.6 V
- open-circuit voltage (Voc): 52.9 V
- short-circuit current (ISC): 10.74 A
- maximum system voltage: 1500 VDC (IEC)
- connector type: MC4 / MC4 compatible
- front glass: 1.6 mm thermally reinforced glass with high transparency
- protection rating: IP68.
- number of cells: 144
- dimensions: 1762 x 1134 x 30 mm
- weight: 21 kg
- frame: anodized aluminum alloy
- frame color: black
- packaging: 1 pc / pallet 36 pcs

The panels are suitable for subsidized and non-subsidized installations. SVT code SVT36151 for the New Green Savings subsidy program (2021-2030)

This is oversized merchandise and is not eligible for free shipping. Delivery time from order placement may be extended by 3-4 business days.
